PRODUCT NAME
SYFMB
Tool Material
Coating
Product Description

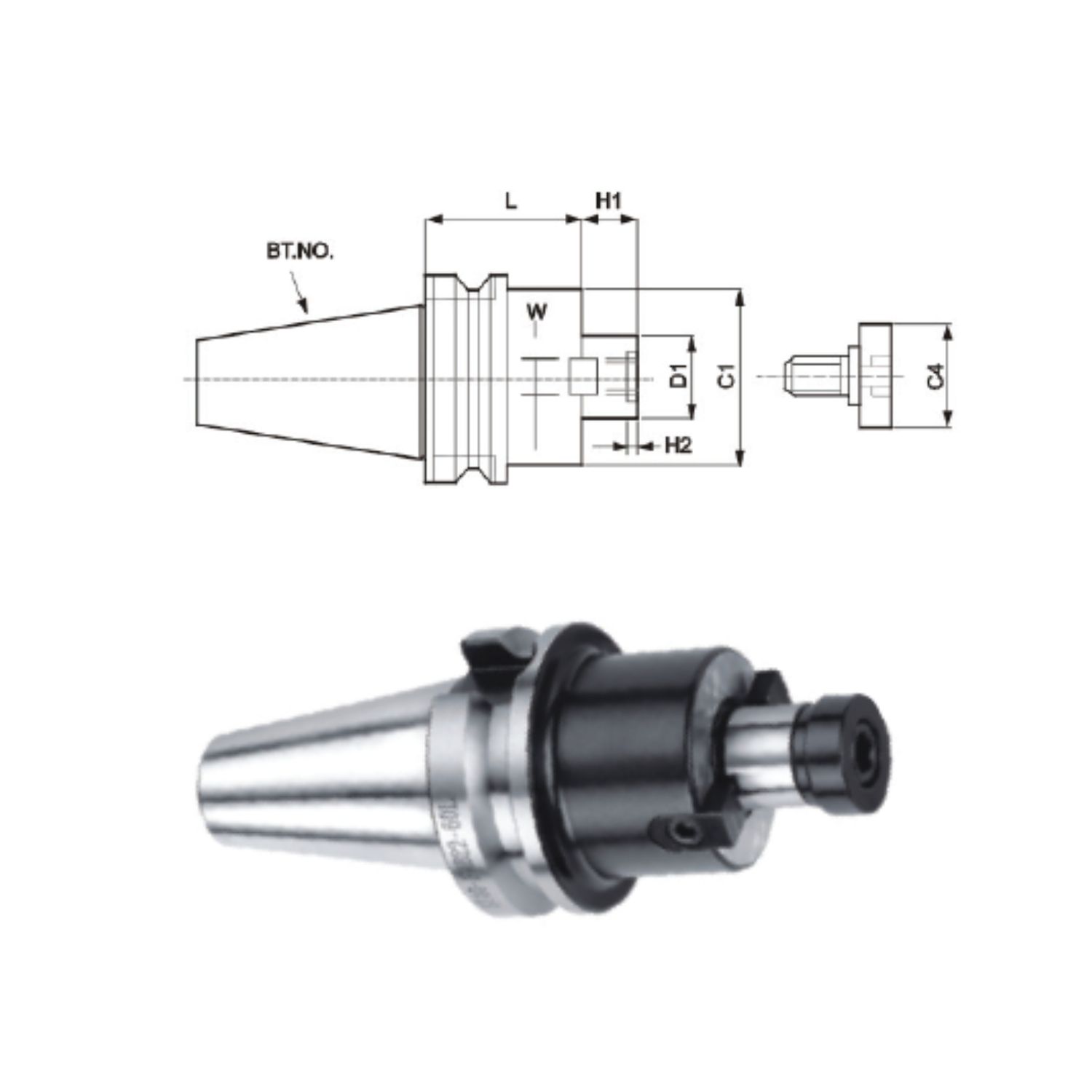

BT-FMB Face Mill Arbor
| Part No. | D | L | C1 | H1 | H2 | W | C4 |
|---|---|---|---|---|---|---|---|
| SYFMB BT30 2245 | 22.0 | 45.0 | 50.0 | 18.0 | 4.0 | 10.0 | M10 |
| SYFMB BT30 2745 | 27.0 | 45.0 | 60.0 | 20.0 | 4.0 | 12.0 | M12 |
| SYFMB BT40 2245 | 22.0 | 45.0 | 48.0 | 18.0 | 4.0 | 10.0 | M10 |
| SYFMB BT40 22100 | 22.0 | 100.0 | 48.0 | 18.0 | 4.0 | 10.0 | M10 |
| SYFMB BT40 2745 | 27.0 | 45.0 | 60.0 | 20.0 | 4.0 | 12.0 | M12 |
| SYFMB BT40 27100 | 27.0 | 100.0 | 60.0 | 20.0 | 4.0 | 12.0 | M12 |
| SYFMB BT40 3260 | 32.0 | 60.0 | 78.0 | 22.0 | 4.0 | 16.0 | M16 |
| SYFMB BT40 4060 | 40.0 | 60.0 | 80.0 | 25.0 | 4.0 | 16.0 | M16 |
| SYFMB BT50 2260 | 22.0 | 60.0 | 48.0 | 18.0 | 4.0 | 10.0 | M10 |
| SYFMB BT50 22100 | 22.0 | 100.0 | 48.0 | 18.0 | 4.0 | 10.0 | M10 |
| SYFMB BT50 2760 | 27.0 | 60.0 | 60.0 | 20.0 | 4.0 | 12.0 | M12 |
| SYFMB BT50 27100 | 27.0 | 100.0 | 60.0 | 20.0 | 4.0 | 12.0 | M12 |
| SYFMB BT50 3260 | 32.0 | 60.0 | 78.0 | 22.0 | 4.0 | 16.0 | M16 |
| SYFMB BT50 32100 | 32.0 | 100.0 | 78.0 | 22.0 | 4.0 | 16.0 | M16 |
| SYFMB BT50 32150 | 32.0 | 150.0 | 78.0 | 22.0 | 4.0 | 16.0 | M16 |
| SYFMB BT50 4060 | 40.0 | 60.0 | 89.0 | 25.0 | 4.0 | 16.0 | M16 |
