PRODUCT NAME
SYHCBN 200
Tool Material
HSS Cobalt
Coating
Uncoated
Recommendation Good
Steel
Stainless Steel
Cast Iron
Aluminium
Helix
30°
Product Description

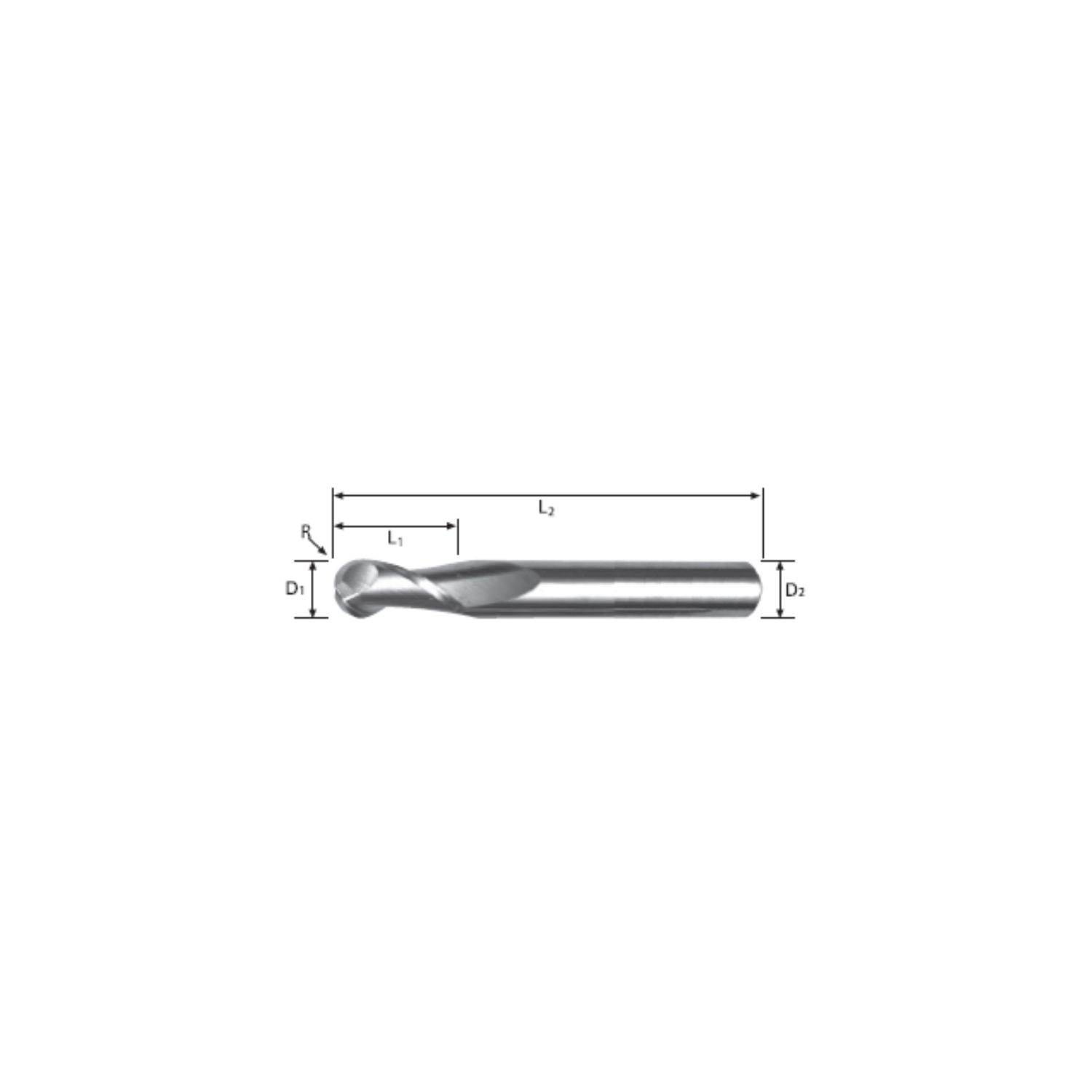

HSS Cobalt Ball Nose 2 Flute Uncoated
| Part No. | Mill Dia (D1) | Radius (R) | Cutting Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|
| SYHCBN 200 010 | 1.0 | 0.50 | 2.5 | 6.0 | 50.0 |
| SYHCBN 200 015 | 1.5 | 0.75 | 4.0 | 6.0 | 50.0 |
| SYHCBN 200 020 | 2.0 | 1.00 | 5.0 | 6.0 | 50.0 |
| SYHCBN 200 025 | 2.5 | 1.25 | 6.0 | 6.0 | 60.0 |
| SYHCBN 200 030 | 3.0 | 1.50 | 8.0 | 6.0 | 60.0 |
| SYHCBN 200 040 | 4.0 | 2.00 | 8.0 | 6.0 | 70.0 |
| SYHCBN 200 050 | 5.0 | 2.50 | 10.0 | 6.0 | 80.0 |
| SYHCBN 200 060 | 6.0 | 3.00 | 12.0 | 6.0 | 90.0 |
| SYHCBN 200 070 | 7.0 | 3.50 | 14.0 | 8.0 | 90.0 |
| SYHCBN 200 080 | 8.0 | 4.00 | 14.0 | 8.0 | 100.0 |
| SYHCBN 200 090 | 9.0 | 4.50 | 18.0 | 10.0 | 100.0 |
| SYHCBN 200 100 | 10.0 | 5.00 | 18.0 | 10.0 | 100.0 |
| SYHCBN 200 110 | 11.0 | 5.50 | 22.0 | 12.0 | 100.0 |
| SYHCBN 200 120 | 12.0 | 6.00 | 22.0 | 12.0 | 110.0 |
| SYHCBN 200 140 | 14.0 | 7.00 | 26.0 | 12.0 | 110.0 |
| SYHCBN 200 160 | 16.0 | 8.00 | 30.0 | 16.0 | 140.0 |
| SYHCBN 200 180 | 18.0 | 9.00 | 34.0 | 16.0 | 140.0 |
| SYHCBN 200 200 | 20.0 | 10.00 | 38.0 | 20.0 | 160.0 |
| SYHCBN 200 250 | 25.0 | 12.50 | 50.0 | 25.0 | 180.0 |
