PRODUCT NAME
SYHCPOOS - BRIGHT
Tool Material
HSS Cobalt
Coating
Uncoated
Recommendation Excellent
Aluminium
Recommendation Good
Steel
Stainless Steel
Cast Iron
Product Description
HSS Cobalt Spiral Pointed Machine Tap Uncoated (PO)
(Over Size)

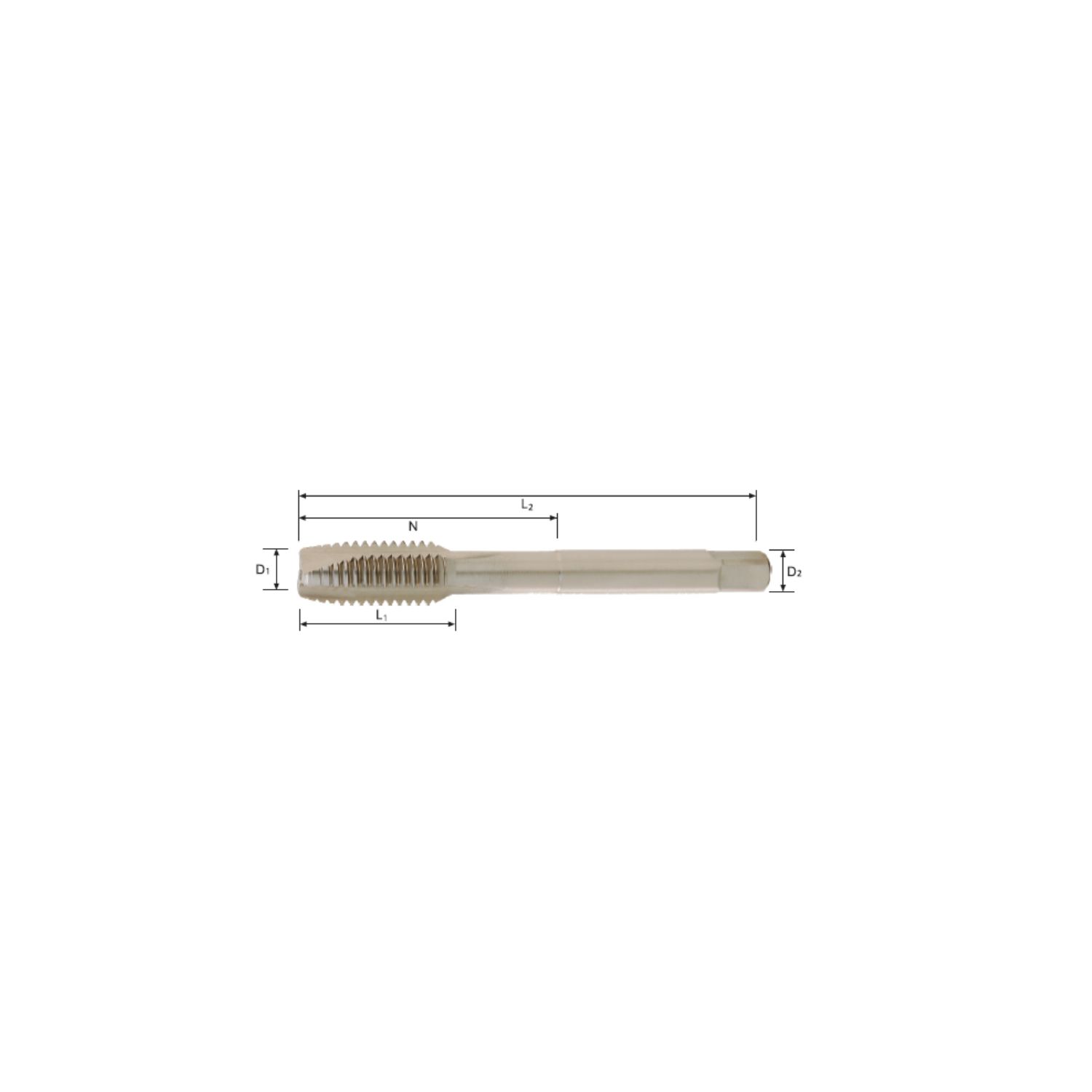

| Part No. | Tap Dia (D1) | Thread Length (L1) | Neck (N) | Shank Dia (D2) | Overall Length (L2) | Drill Size |
|---|---|---|---|---|---|---|
| Metric (mm) (6G) | ||||||
| SYHCPOOS 016035 | M1.6 x 0.35 | 8.8 | – | 3.0 | 37.0 | 1.25 |
| SYHCPOOS 020040 | M2.0 x 0.40 | 8.0 | – | 3.0 | 41.0 | 1.60 |
| SYHCPOOS 025045 | M2.5 x 0.45 | 10.0 | – | 3.0 | 45.0 | 2.05 |
| SYHCPOOS 030050 | M3.0 x 0.50 | 8.2 | 19.2 | 4.0 | 47.0 | 2.50 |
| SYHCPOOS 040070 | M4.0 x 0.70 | 9.6 | 22.6 | 5.0 | 54.0 | 3.30 |
| SYHCPOOS 050080 | M5.0 x 0.80 | 12.0 | 27.0 | 5.5 | 62.0 | 4.20 |
| SYHCPOOS 060100 | M6.0 x 1.00 | 12.0 | 30.0 | 6.0 | 62.0 | 5.00 |
| SYHCPOOS 080125 | M8.0 x 1.25 | 15.0 | 32.0 | 6.2 | 70.0 | 6.75 |
| Part No. | Tap Dia (D1) | Thread Length (L1) | Neck (N) | Shank Dia (D2) | Overall Length (L2) | Drill Size |
|---|---|---|---|---|---|---|
| UNC (2B +0.02 / +0.03) | ||||||
| SYHCPOOS 2-56 UNC | 2-56 | 12.0 | 14.0 | 3.0 | 45.0 | 1.85 |
| SYHCPOOS 4-40 UNC | 4-40 | 10.0 | 16.0 | 3.0 | 45.0 | 2.35 |
| SYHCPOOS 6-32 UNC | 6-32 | 13.0 | 20.0 | 4.0 | 50.0 | 2.85 |
| SYHCPOOS 8-32 UNC | 8-32 | 13.5 | 21.5 | 5.0 | 57.0 | 3.50 |
| SYHCPOOS 1/4-20 UNC | 1/4-20 | 19.5 | 29.0 | 6.0 | 62.0 | 5.10 |
| Part No. | Tap Dia (D1) | Thread Length (L1) | Neck (N) | Shank Dia (D2) | Overall Length (L2) | Drill Size |
|---|---|---|---|---|---|---|
| UNF (2B +0.02) | ||||||
| SYHCPOOS 10-32 UNF | 10-32 | 16.5 | 26.0 | 5.5 | 66.0 | 4.10 |
