PRODUCT NAME
SYHCSD 900-C
Tool Material
HSS Cobalt
Coating
TiN Coating
Recommendation Excellent
Steel
Stainless Steel
Recommendation Good
Cast Iron
Aluminium
Helix
Angle 90°
Product Description

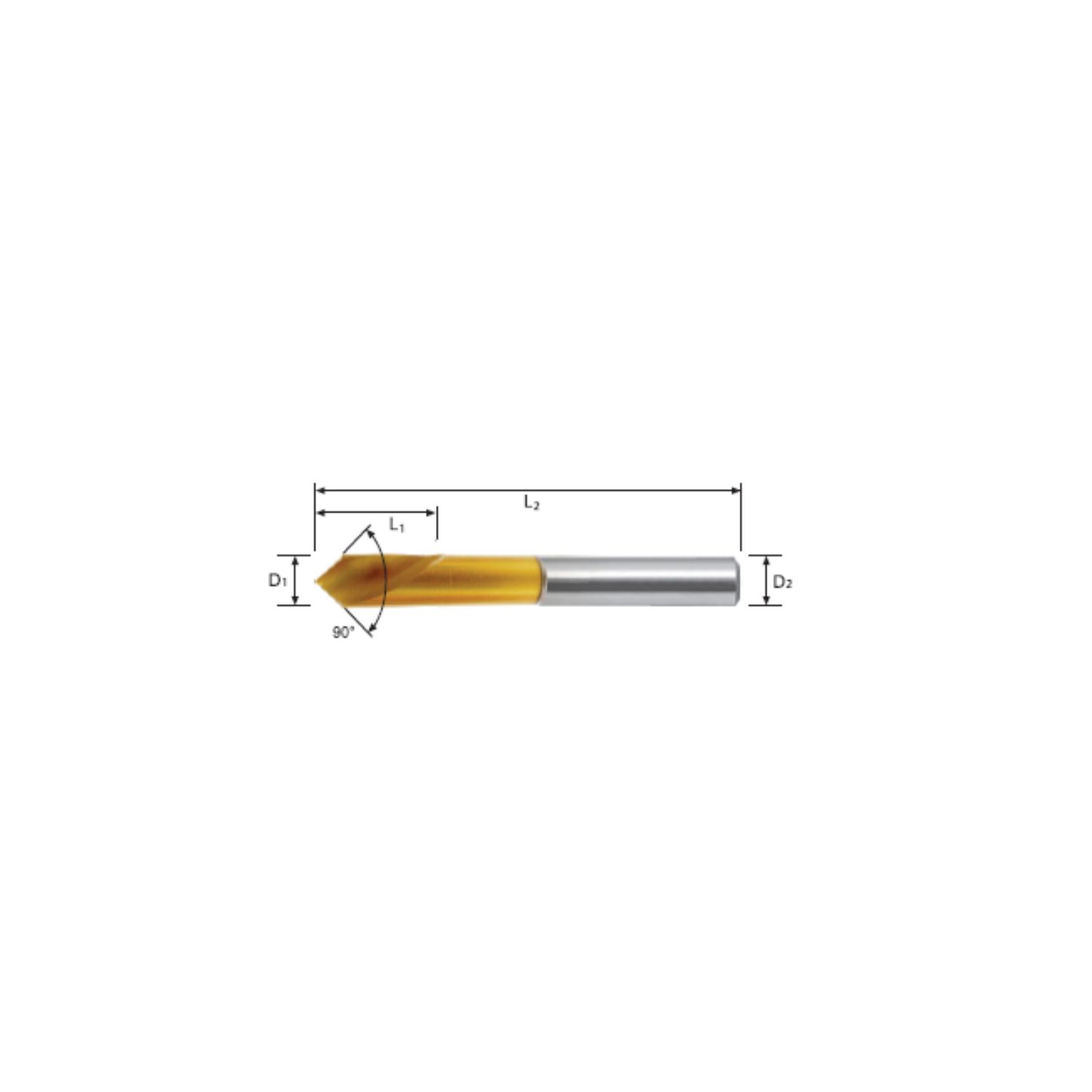

HSS Cobalt NC Spotting Drill Coated (90°)
| Part No. | Drill Dia (D1) | Flute Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|
| SYHCSD 900 030C | 3.0 | 17.0 | 3.0 | 50.0 |
| SYHCSD 900 040C | 4.0 | 20.0 | 4.0 | 55.0 |
| SYHCSD 900 050C | 5.0 | 23.0 | 5.0 | 60.0 |
| SYHCSD 900 060C | 6.0 | 25.0 | 6.0 | 65.0 |
| SYHCSD 900 080C | 8.0 | 30.0 | 8.0 | 80.0 |
| SYHCSD 900 100C | 10.0 | 35.0 | 10.0 | 90.0 |
| SYHCSD 900 120C | 12.0 | 40.0 | 12.0 | 100.0 |
| SYHCSD 900 160C | 16.0 | 45.0 | 16.0 | 115.0 |
| SYHCSD 900 200C | 20.0 | 55.0 | 20.0 | 130.0 |
