PRODUCT NAME
SYHCSPBO - BRIGHT
Tool Material
HSS Cobalt
Coating
Uncoated
Recommendation Excellent
Aluminium
Recommendation Good
Steel
Stainless Steel
Cast Iron
Product Description
HSS Cobalt Spiral Flute Machine Tap Uncoated (SP)
(Bottoming – Form F)

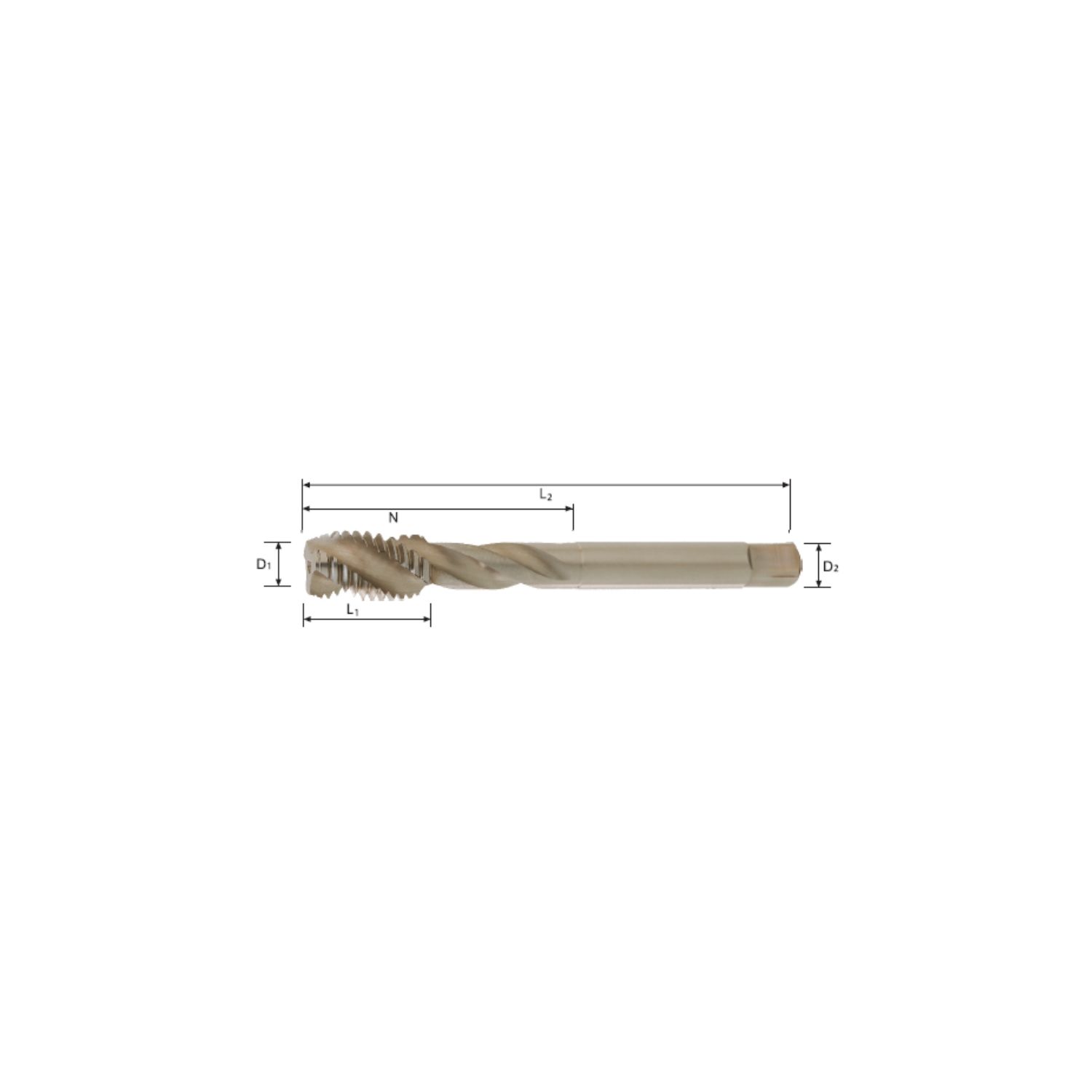

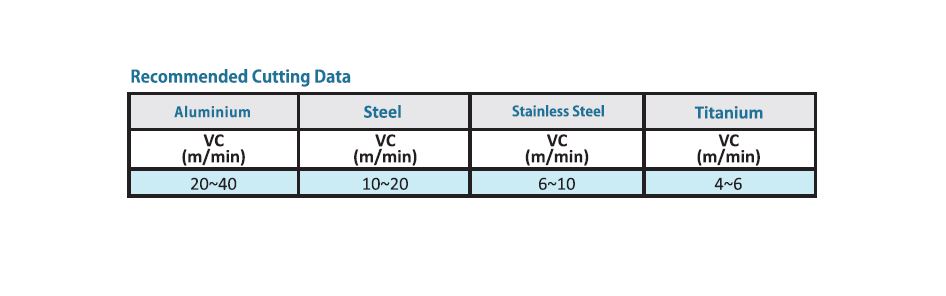

| Part No. | Tap Dia (D1) | Thread Length (L1) | Neck (N) | Shank Dia (D2) | Overall Length (L2) | Drill Size |
|---|---|---|---|---|---|---|
| Metric (mm) (6G) | ||||||
| SYHCSPOS 016035 | M1.6 x 0.35 | 7.0 | – | 3.0 | 35.0 | 1.25 |
| SYHCSPOS 020040 | M2.0 x 0.40 | 7.0 | – | 3.0 | 39.0 | 1.60 |
| SYHCSPOS 025045 | M2.5 x 0.45 | 8.5 | – | 3.0 | 43.0 | 2.05 |
| SYHCSPOS 030050 | M3.0 x 0.50 | 6.0 | 16.0 | 4.0 | 44.0 | 2.50 |
| SYHCSPOS 040070 | M4.0 x 0.70 | 7.0 | 19.0 | 5.0 | 51.0 | 3.30 |
| SYHCSPOS 050080 | M5.0 x 0.80 | 9.0 | 22.5 | 5.5 | 59.0 | 4.20 |
| SYHCSPOS 060100 | M6.0 x 1.00 | 10.5 | 28.0 | 6.0 | 60.0 | 5.00 |
| Part No. | Tap Dia (D1) | Thread Length (L1) | Neck (N) | Shank Dia (D2) | Overall Length (L2) | Drill Size |
|---|---|---|---|---|---|---|
| UNC | ||||||
| SYHCSPBO 2-56 UNC | 2-56 | 10.5 | – | 3.0 | 43.0 | 1.85 |
| SYHCSPBO 4-40 UNC | 4-40 | 6.5 | 16.5 | 3.0 | 43.0 | 2.35 |
| SYHCSPBO 6-32 UNC | 6-32 | 6.5 | 16.5 | 4.0 | 46.0 | 2.85 |
| SYHCSPBO 8-32 UNC | 8-32 | 6.5 | 18.0 | 5.0 | 50.0 | 3.50 |
| SYHCSPBO 1/4-20 UNC | 1/4-20 | 10.0 | 26.5 | 6.0 | 60.0 | 5.10 |
| Part No. | Tap Dia (D1) | Thread Length (L1) | Neck (N) | Shank Dia (D2) | Overall Length (L2) | Drill Size |
|---|---|---|---|---|---|---|
| UNF | ||||||
| SYHCSPBO 10-32 UNF | 10-32 | 16.5 | 23.5 | 5.5 | 62.0 | 4.10 |
