PRODUCT NAME
SYMBBR
Tool Material
Ultra Fine Carbide (UF)
Coating
AlTiSiN Coating
Recommendation Excellent
Steel
Recommendation Good
Stainless Steel
Cast Iron
Aluminium
HRC
<60
Product Description
Carbide Mini Boring Bar Coated

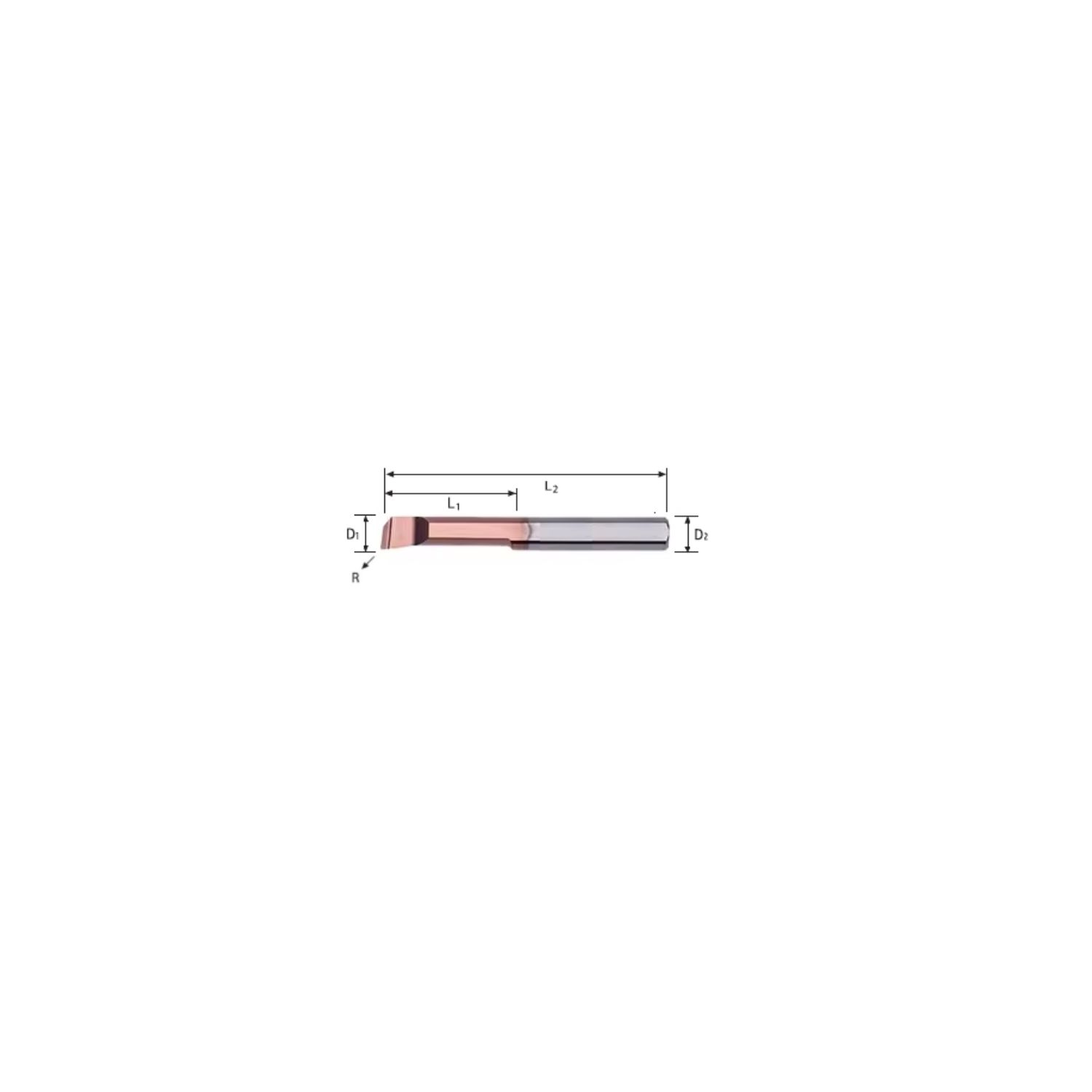

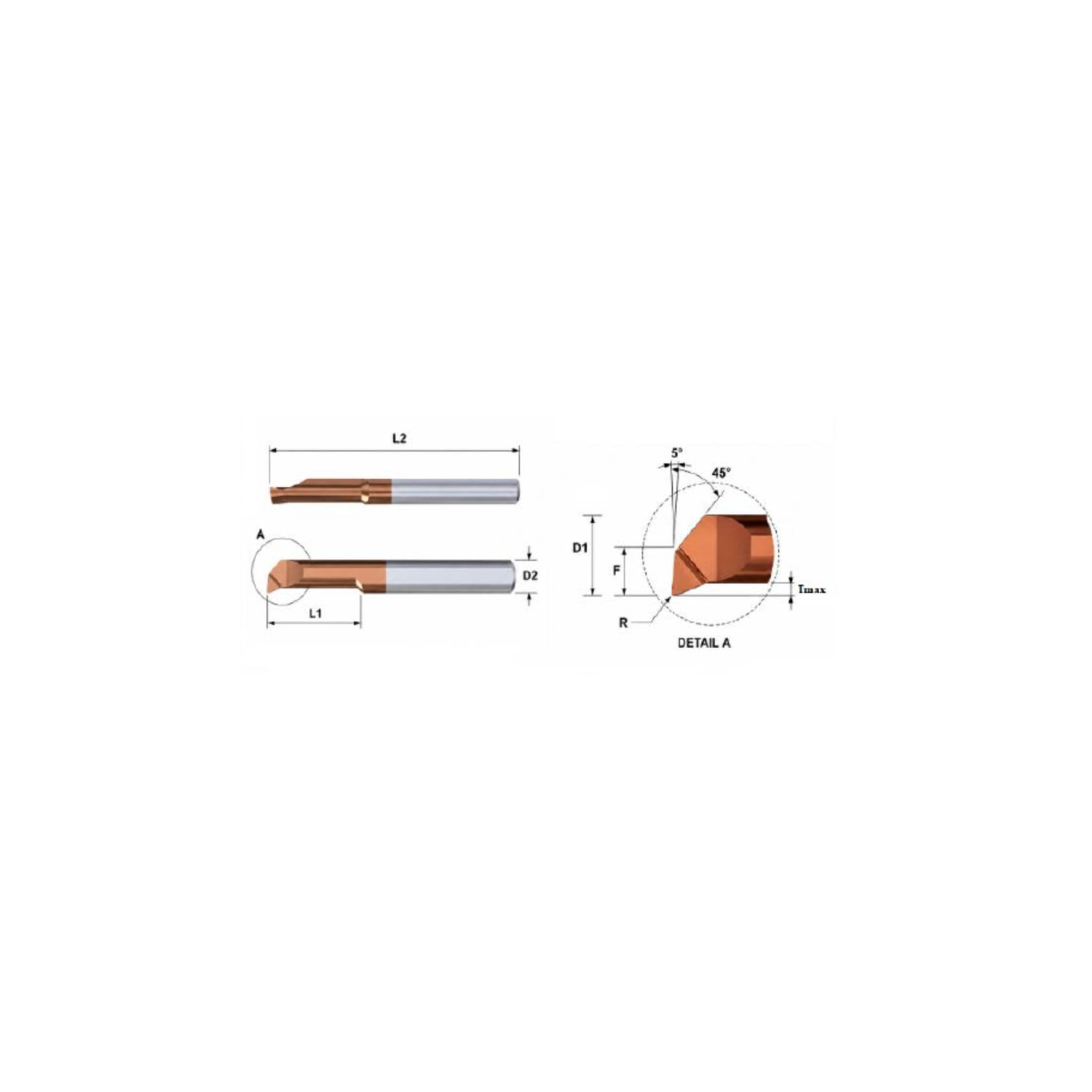

| Part No. | Dmin | Radius | Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|
| SYMBBR 017010C-7 | 1.7 | R0.10 | 7.0 | 4.0 | 22.0 |
| SYMBBR 017010C-11 | 1.7 | R0.10 | 11.0 | 4.0 | 26.0 |
| SYMBBR 020005C-5 | 2.0 | R0.05 | 5.0 | 4.0 | 20.0 |
| SYMBBR 020005C-10 | 2.0 | R0.05 | 10.0 | 4.0 | 25.0 |
| SYMBBR 020005C-16 | 2.0 | R0.05 | 16.0 | 4.0 | 31.0 |
| SYMBBR 020010C-5 | 2.0 | R0.10 | 5.0 | 4.0 | 20.0 |
| SYMBBR 020010C-10 | 2.0 | R0.10 | 10.0 | 4.0 | 25.0 |
| SYMBBR 020010C-16 | 2.0 | R0.10 | 16.0 | 4.0 | 31.0 |
| SYMBBR 022010C-5 | 2.2 | R0.10 | 5.0 | 4.0 | 20.0 |
| SYMBBR 022010C-10 | 2.2 | R0.10 | 10.0 | 4.0 | 25.0 |
| SYMBBR 022010C-16 | 2.2 | R0.10 | 16.0 | 4.0 | 31.0 |
| SYMBBR 025005C-6 | 2.5 | R0.05 | 6.0 | 4.0 | 21.0 |
| SYMBBR 025005C-12 | 2.5 | R0.05 | 12.0 | 4.0 | 27.0 |
| SYMBBR 025005C-18 | 2.5 | R0.05 | 18.0 | 4.0 | 33.0 |
| SYMBBR 025010C-6 | 2.5 | R0.10 | 6.0 | 4.0 | 21.0 |
| SYMBBR 025010C-12 | 2.5 | R0.10 | 12.0 | 4.0 | 27.0 |
| SYMBBR 025010C-18 | 2.5 | R0.10 | 18.0 | 4.0 | 33.0 |
| SYMBBR 027010C-10 | 2.7 | R0.10 | 10.0 | 4.0 | 25.0 |
| SYMBBR 027010C-16 | 2.7 | R0.10 | 16.0 | 4.0 | 31.0 |
| SYMBBR 027010C-20 | 2.7 | R0.10 | 20.0 | 4.0 | 35.0 |
| SYMBBR 030005C-10 | 3.0 | R0.05 | 10.0 | 4.0 | 25.0 |
| SYMBBR 030005C-16 | 3.0 | R0.05 | 16.0 | 4.0 | 31.0 |
| SYMBBR 030005C-20 | 3.0 | R0.05 | 20.0 | 4.0 | 35.0 |
| SYMBBR 030015C-10 | 3.0 | R0.15 | 10.0 | 4.0 | 25.0 |
| SYMBBR 030015C-16 | 3.0 | R0.15 | 16.0 | 4.0 | 31.0 |
| SYMBBR 030015C-20 | 3.0 | R0.15 | 20.0 | 4.0 | 35.0 |
| SYMBBR 032015C-10 | 3.2 | R0.15 | 10.0 | 4.0 | 25.0 |
| SYMBBR 032015C-16 | 3.2 | R0.15 | 16.0 | 4.0 | 31.0 |
| SYMBBR 032015C-20 | 3.2 | R0.15 | 20.0 | 4.0 | 35.0 |
| SYMBBR 035005C-12 | 3.5 | R0.05 | 12.0 | 4.0 | 27.0 |
| SYMBBR 035005C-18 | 3.5 | R0.05 | 18.0 | 4.0 | 33.0 |
| SYMBBR 035005C-22 | 3.5 | R0.05 | 22.0 | 4.0 | 37.0 |
| SYMBBR 035005C-27 | 3.5 | R0.05 | 27.0 | 4.0 | 42.0 |
| SYMBBR 035015C-12 | 3.5 | R0.15 | 12.0 | 4.0 | 27.0 |
| SYMBBR 035015C-18 | 3.5 | R0.15 | 18.0 | 4.0 | 33.0 |
| SYMBBR 035015C-22 | 3.5 | R0.15 | 22.0 | 4.0 | 37.0 |
| SYMBBR 035015C-27 | 3.5 | R0.15 | 27.0 | 4.0 | 42.0 |
| SYMBBR 037015C-12 | 3.7 | R0.15 | 12.0 | 4.0 | 27.0 |
| SYMBBR 037015C-18 | 3.7 | R0.15 | 18.0 | 4.0 | 33.0 |
| SYMBBR 037015C-22 | 3.7 | R0.15 | 22.0 | 4.0 | 37.0 |
| SYMBBR 040005C-12 | 4.0 | R0.05 | 12.0 | 4.0 | 27.0 |
| SYMBBR 040005C-18 | 4.0 | R0.05 | 18.0 | 4.0 | 33.0 |
| SYMBBR 040005C-22 | 4.0 | R0.05 | 22.0 | 4.0 | 37.0 |
| SYMBBR 040005C-27 | 4.0 | R0.05 | 27.0 | 4.0 | 42.0 |
| SYMBBR 040005C-32 | 4.0 | R0.05 | 32.0 | 4.0 | 47.0 |
| SYMBBR 040010C-12 | 4.0 | R0.10 | 12.0 | 4.0 | 27.0 |
| SYMBBR 040010C-18 | 4.0 | R0.10 | 18.0 | 4.0 | 33.0 |
| SYMBBR 040010C-22 | 4.0 | R0.10 | 22.0 | 4.0 | 37.0 |
| SYMBBR 040010C-27 | 4.0 | R0.10 | 27.0 | 4.0 | 42.0 |
| SYMBBR 040010C-32 | 4.0 | R0.10 | 32.0 | 4.0 | 47.0 |
| SYMBBR 040015C-12 | 4.0 | R0.15 | 12.0 | 4.0 | 27.0 |
| SYMBBR 040015C-18 | 4.0 | R0.15 | 18.0 | 4.0 | 33.0 |
| SYMBBR 040015C-22 | 4.0 | R0.15 | 22.0 | 4.0 | 37.0 |
| SYMBBR 040015C-27 | 4.0 | R0.15 | 27.0 | 4.0 | 42.0 |
| SYMBBR 040015C-32 | 4.0 | R0.15 | 32.0 | 4.0 | 47.0 |
