PRODUCT NAME
SYPCCEM 400-C
Tool Material
Ultra Micro Grain Carbide (UMG)
Coating
Alcrona Coating
Recommendation Excellent
Steel
Stainless Steel
Recommendation Good
Cast Iron
Aluminium
HRC
<60
Helix
39°~41°
Product Description

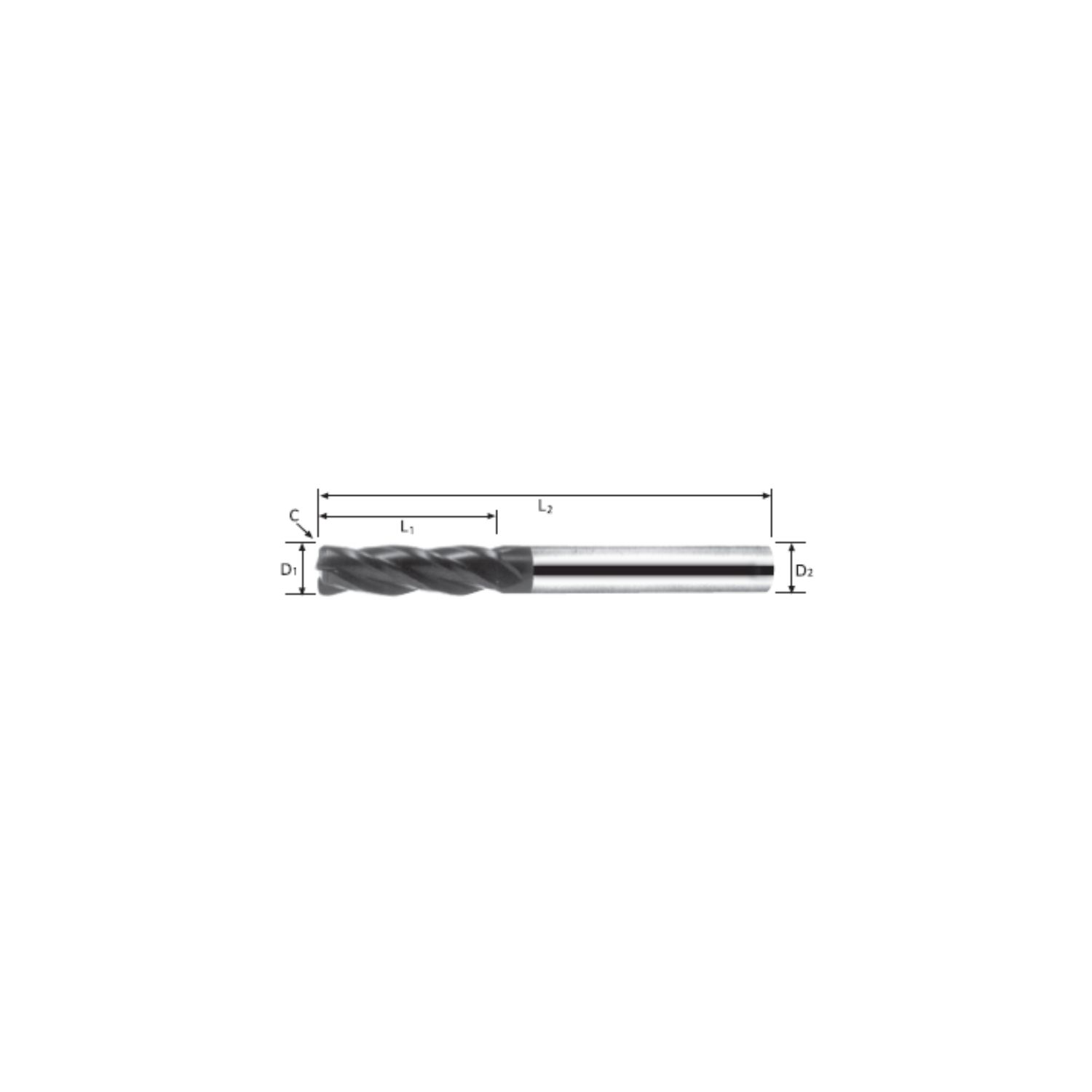

Carbide Corner Chamfer End Mill 4 Flute Coated
(Variable Helix And Unequal Flute)
| Part No. | Mill Dia (D1) | Chamfer (C) | Cutting Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|
| SYPCCEM 400 030C-6 | 3.0 | 0.10 | 9.0 | 6.0 | 50.0 |
| SYPCCEM 400 040C-6 | 4.0 | 0.10 | 12.0 | 6.0 | 50.0 |
| SYPCCEM 400 050C-6 | 5.0 | 0.15 | 15.0 | 6.0 | 50.0 |
| SYPCCEM 400 060C | 6.0 | 0.15 | 18.0 | 6.0 | 50.0 |
| SYPCCEM 400 080C | 8.0 | 0.20 | 22.0 | 8.0 | 60.0 |
| SYPCCEM 400 100C | 10.0 | 0.25 | 27.0 | 10.0 | 75.0 |
| SYPCCEM 400 120C | 12.0 | 0.30 | 32.0 | 12.0 | 75.0 |
