PRODUCT NAME
SYPDTC 450-C
Tool Material
Micro Grain Carbide (MG)
Coating
TiSiN Coating
Recommendation Excellent
Steel
Stainless Steel
Cast Iron
Recommendation Good
Aluminium
HRC
<50
Product Description

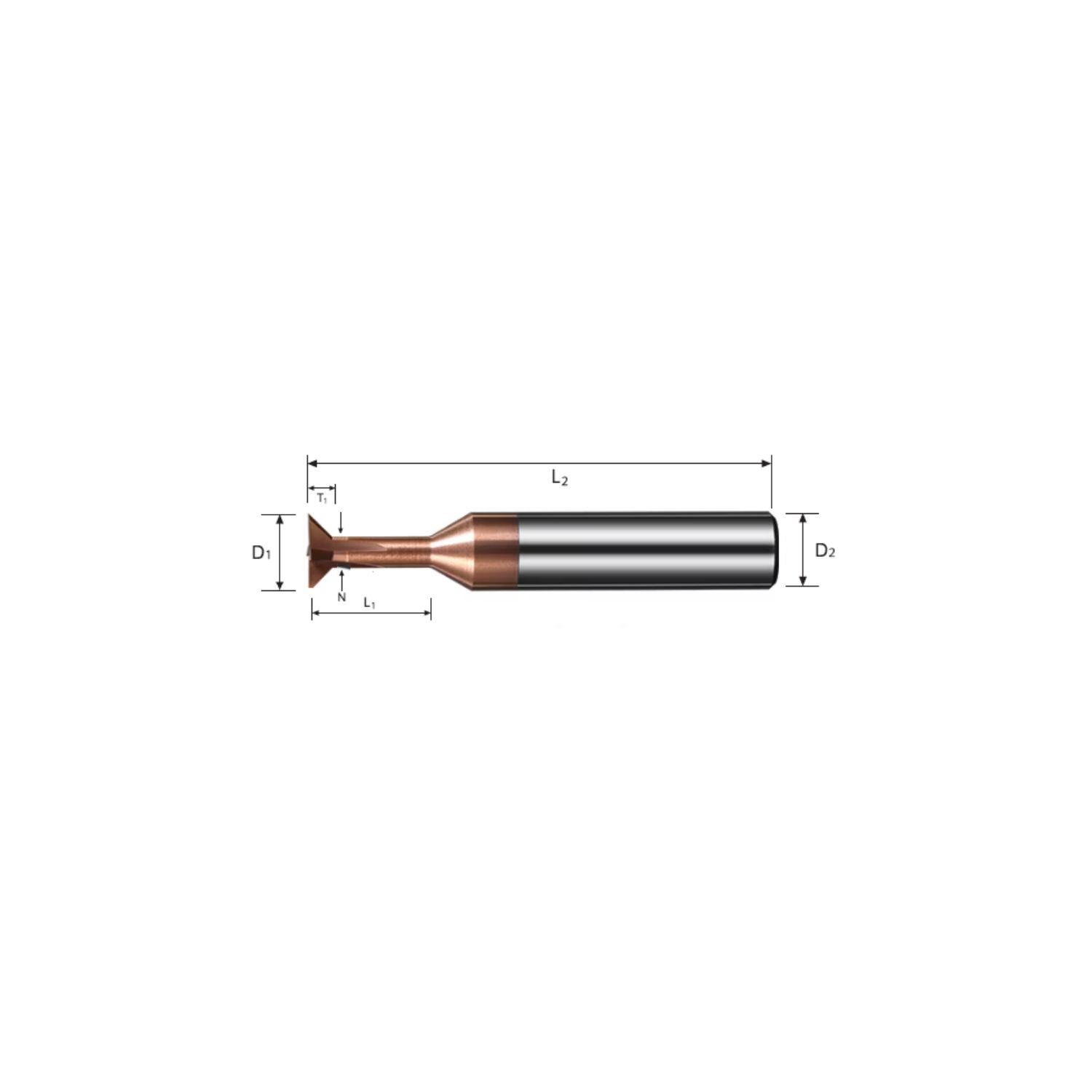

Carbide Dovetail Cutter 4 Flute Coated (45°)
| Part No. | Mill Dia (D1) | Thickness (T1) | Neck (N) | Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|---|
| SYPDTC 450 010C | 1.0 | 0.25 | 0.5 | 3.25 | 4.0 | 50.0 |
| SYPDTC 450 015C | 1.5 | 0.375 | 0.75 | 3.375 | 4.0 | 50.0 |
| SYPDTC 450 020C | 2.0 | 0.5 | 1.0 | 3.5 | 4.0 | 50.0 |
| SYPDTC 450 025C | 2.5 | 0.625 | 1.25 | 3.625 | 4.0 | 50.0 |
| SYPDTC 450 030C | 3.0 | 0.75 | 1.5 | 4.75 | 4.0 | 50.0 |
| SYPDTC 450 040C | 4.0 | 1.0 | 2.0 | 7.0 | 4.0 | 50.0 |
| SYPDTC 450 050C | 5.0 | 1.25 | 2.5 | 11.25 | 6.0 | 50.0 |
| SYPDTC 450 060C | 6.0 | 1.5 | 3.0 | 11.5 | 6.0 | 50.0 |
| SYPDTC 450 080C | 8.0 | 2.0 | 4.0 | 14.0 | 8.0 | 60.0 |
| SYPDTC 450 100C | 10.0 | 2.5 | 5.0 | 17.5 | 10.0 | 60.0 |
| SYPDTC 450 120C | 12.0 | 3.0 | 6.0 | 18.0 | 12.0 | 60.0 |
