PRODUCT NAME
SYPFBCT 900-C
Tool Material
Micro Grain Carbide (MG)
Coating
TiSiN Coating
Recommendation Excellent
Steel
Stainless Steel
Cast Iron
Recommendation Good
Aluminium
HRC
<50
Product Description

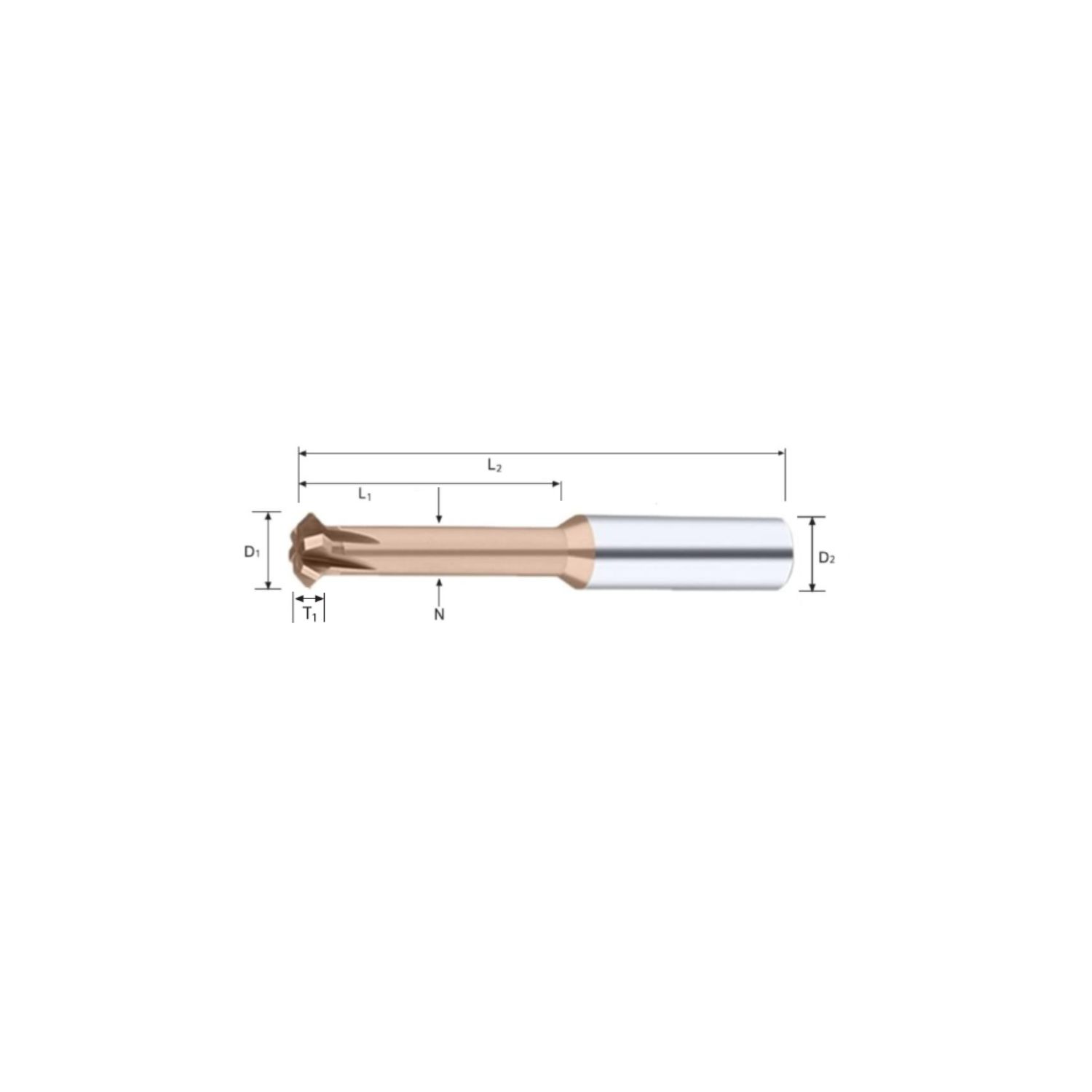

Carbide Front Back Chamfer 4 Flute Coated (90°)
| Part No. | Mill Dia (D1) | Thickness (T1) | Neck (N) | Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|---|
| SYPFBCT 900 020C | 2.0 | 0.8 | 1.2 | 8.0 | 4.0 | 50.0 |
| SYPFBCT 900 025C | 2.5 | 1.0 | 1.5 | 10.0 | 4.0 | 50.0 |
| SYPFBCT 900 030C | 3.0 | 1.2 | 1.8 | 12.0 | 4.0 | 50.0 |
| SYPFBCT 900 040C | 4.0 | 1.6 | 2.4 | 16.0 | 4.0 | 50.0 |
| SYPFBCT 900 050C | 5.0 | 2.2 | 2.8 | 20.0 | 6.0 | 50.0 |
| SYPFBCT 900 060C | 6.0 | 3.0 | 3.0 | 25.0 | 6.0 | 50.0 |
| SYPFBCT 900 080C | 8.0 | 3.2 | 4.8 | 28.0 | 8.0 | 60.0 |
| SYPFBCT 900 100C | 10.0 | 3.7 | 6.3 | 35.0 | 10.0 | 75.0 |
| SYPFBCT 900 120C | 12.0 | 5.0 | 7.0 | 42.0 | 12.0 | 75.0 |
