PRODUCT NAME
SYPS
Tool Material
Coating
Product Description

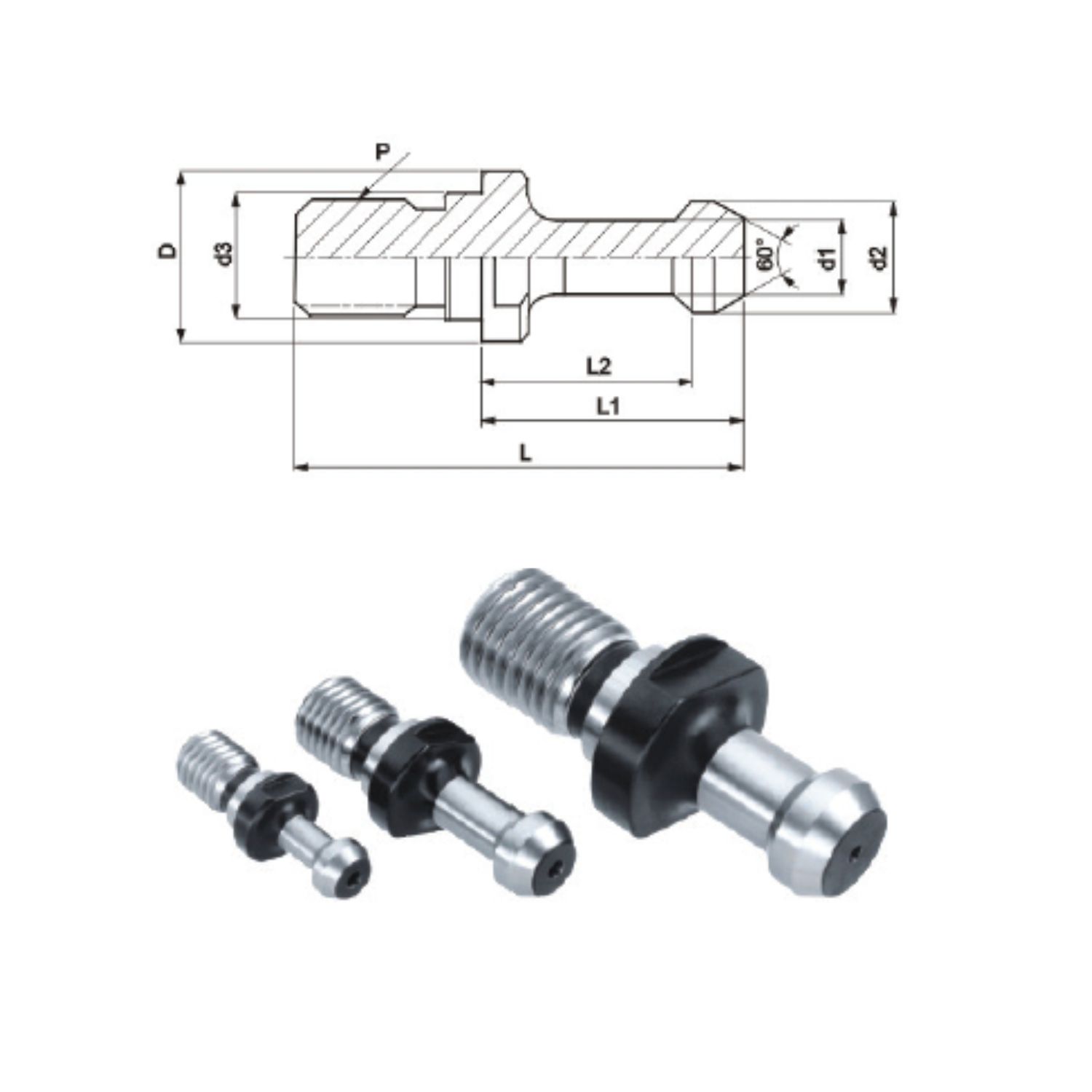

Pull Studs
| Part No. | D | d1 | d2 | d3 | L | L1 | L2 | P |
|---|---|---|---|---|---|---|---|---|
| SYPS BT30 45DEG | 16.5 | 7.0 | 11.0 | 12.5 | 43.0 | 23.0 | 18.0 | M12 x 1.75 |
| SYPS BT30 60DEG | 16.5 | 7.0 | 11.0 | 12.5 | 43.0 | 23.0 | 18.0 | M12 x 1.75 |
| SYPS BT30 90DEG | 16.5 | 7.0 | 11.0 | 12.5 | 43.0 | 23.0 | 18.0 | M12 x 1.75 |
| SYPS BT40 45DEG | 23.0 | 10.0 | 15.0 | 17.0 | 60.0 | 35.0 | 28.0 | M16 x 2.0 |
| SYPS BT40 60DEG | 23.0 | 10.0 | 15.0 | 17.0 | 60.0 | 35.0 | 28.0 | M16 x 2.0 |
| SYPS BT40 90DEG | 23.0 | 10.0 | 15.0 | 17.0 | 60.0 | 35.0 | 28.0 | M16 x 2.0 |
| SYPS BT50 45DEG | 38.0 | 17.0 | 23.0 | 25.0 | 85.0 | 45.0 | 35.0 | M24 x 3.0 |
| SYPS BT50 60DEG | 38.0 | 17.0 | 23.0 | 25.0 | 85.0 | 45.0 | 35.0 | M24 x 3.0 |
| SYPS BT50 90DEG | 38.0 | 17.0 | 23.0 | 25.0 | 85.0 | 45.0 | 35.0 | M24 x 3.0 |
