PRODUCT NAME
SYPTMFP
Tool Material
Micro Grain Carbide (MG)
Coating
TiSiN Coating
Recommendation Excellent
Steel
Stainless Steel
Cast Iron
Recommendation Good
Aluminium
HRC
<50
Product Description

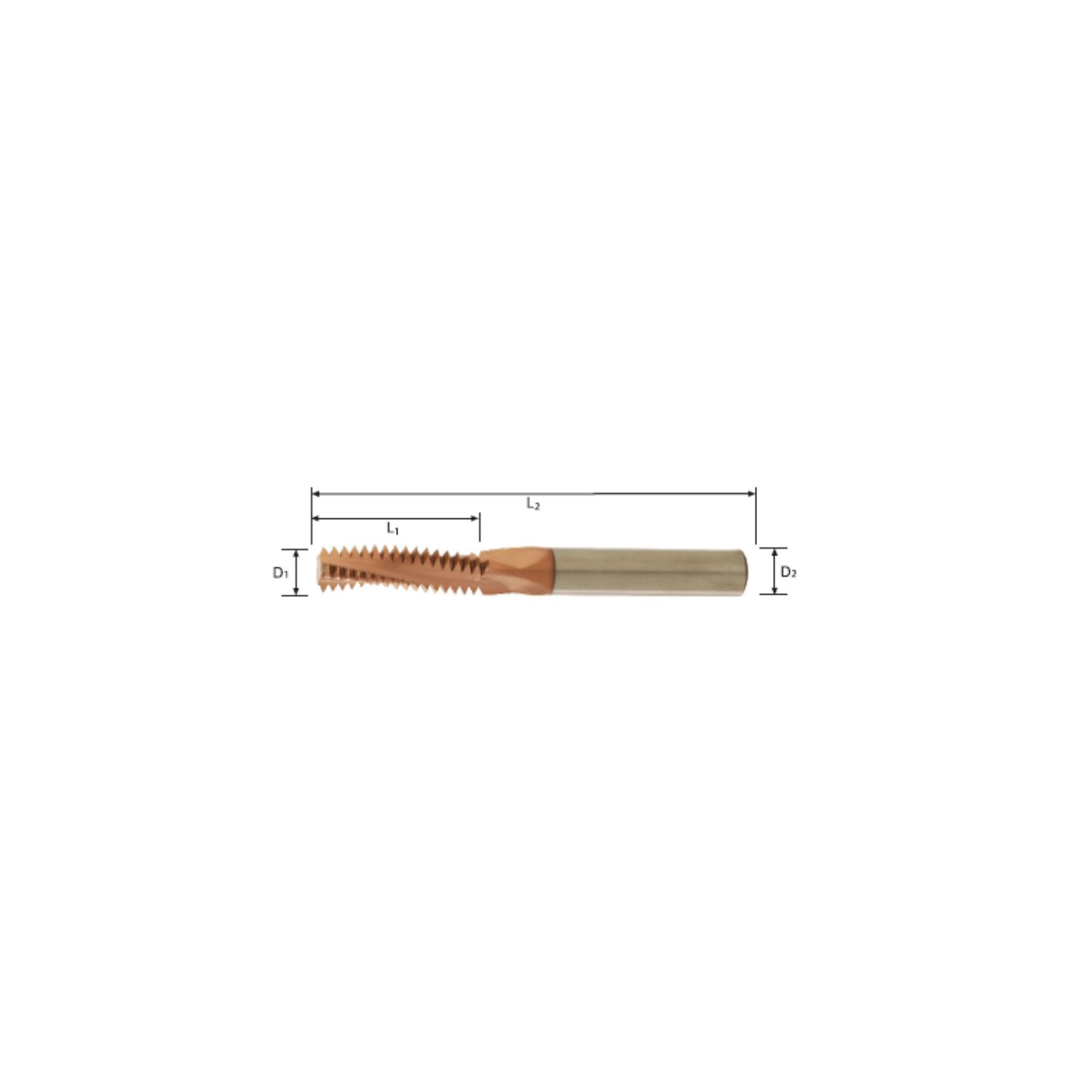

Carbide Thread Milling Cutter Coated (Full Pitch)
| Part No. | Thread Size | Mill Dia (D1) | Cutting Length (L1) | Shank Dia (D2) | Overall Length (L2) |
|---|---|---|---|---|---|
| SYPTMFP 030050 | M3.0 x 0.5 | 2.2 | 6.0 | 6.0 | 50.0 |
| SYPTMFP 040070 | M4.0 x 0.7 | 3.1 | 8.0 | 6.0 | 50.0 |
| SYPTMFP 050080 | M5.0 x 0.8 | 3.8 | 10.0 | 6.0 | 50.0 |
| SYPTMFP 060100 | M6.0 x 1.0 | 4.6 | 15.0 | 6.0 | 50.0 |
| SYPTMFP 080125 | M8.0 x 1.25 | 6.0 | 20.0 | 6.0 | 60.0 |
| SYPTMFP 100150 | M10.0 x 1.50 | 7.8 | 25.0 | 8.0 | 75.0 |
| SYPTMFP 120175 | M12.0 x 1.75 | 9.0 | 29.0 | 10.0 | 75.0 |
| SYPTMFP 140200/160200 | M14.0 x 2.0 M16.0 x 2.0 | 10.0 | 39.0 | 10.0 | 100.0 |
| SYPTMFP 180250/200250 | M18.0 x 2.5 M20.0 x 2.5 | 15.0 | 49.0 | 16.0 | 100.0 |
