SYPTSC

PRODUCT NAME

SYPTSC

Tool Material

Micro Grain Carbide (MG)

Coating

AlTiN Coating

Recommendation Excellent

Steel
Stainless Steel

Recommendation Good

Aluminium

HRC

<55

Product Description

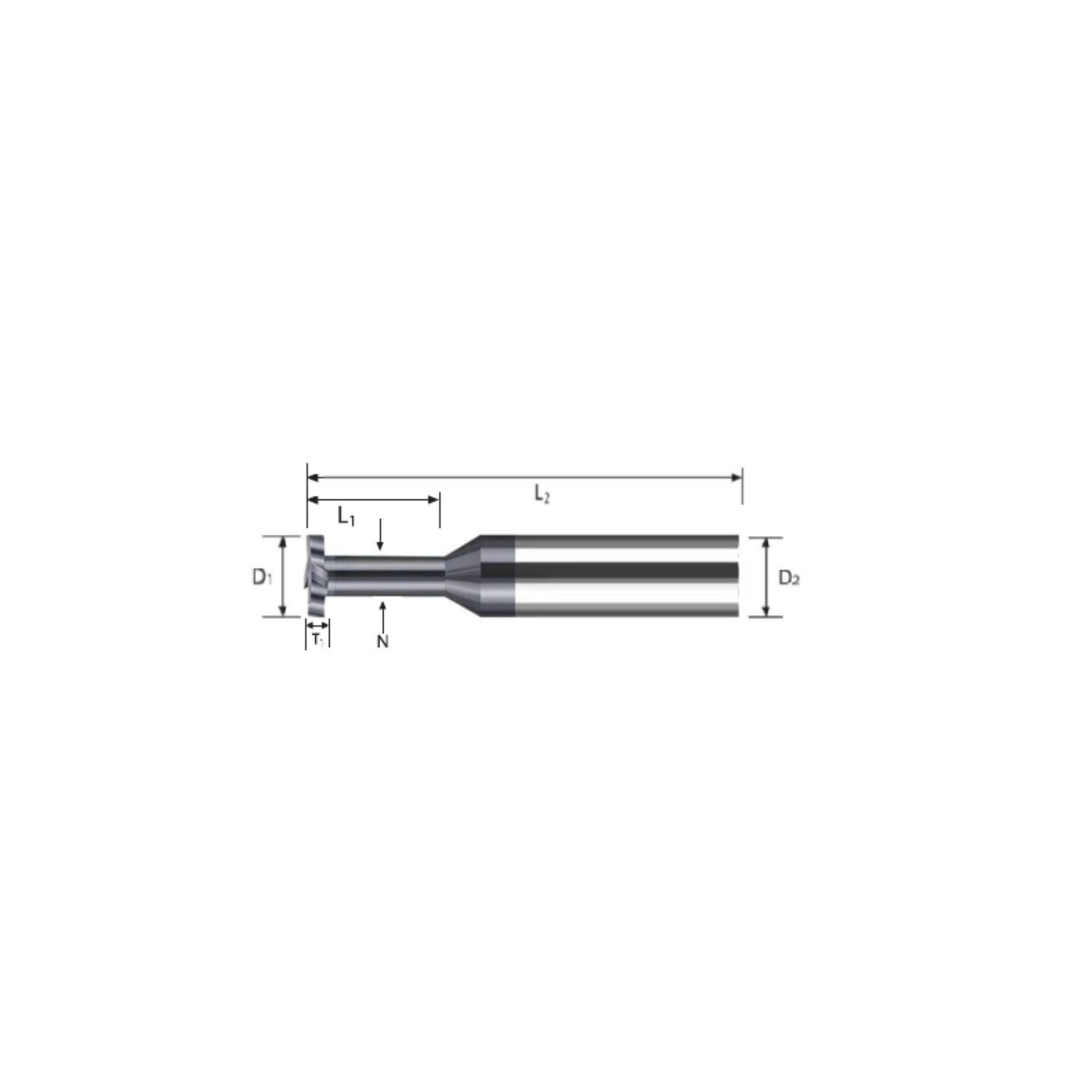

Carbide T-Slot Cutter 4 Flute Coated

Part No.Mill Dia (D1)Thickness (T1)Neck (N)Length (L1)Shank Dia (D2)Overall Length (L2)
SYPTSC 0050 0200C2.00.50.94.54.050.0
SYPTSC 0100 0200C2.01.00.95.04.050.0
SYPTSC 0050 0300C3.00.51.54.54.050.0
SYPTSC 0100 0300C3.01.01.55.04.050.0
SYPTSC 0050 0400C4.00.51.56.54.050.0
SYPTSC 0100 0400C4.01.01.57.04.050.0
SYPTSC 0150 0400C4.01.51.57.54.050.0
SYPTSC 0200 0400C4.02.01.58.04.050.0
SYPTSC 0050 0600C6.00.52.58.56.050.0
SYPTSC 0100 0600C6.01.02.59.06.050.0
SYPTSC 0200 0600C6.02.02.510.06.050.0
SYPTSC 0300 0600C6.03.02.511.06.050.0
SYPTSC 0050 0800C8.00.53.510.58.060.0
SYPTSC 0100 0800C8.01.03.511.08.060.0
SYPTSC 0200 0800C8.02.03.512.08.060.0
SYPTSC 0300 0800C8.03.03.513.08.060.0
SYPTSC 0400 0800C8.04.03.514.08.060.0
SYPTSC 0050 1000C10.00.54.012.510.060.0
SYPTSC 0100 1000C10.01.04.013.010.060.0
SYPTSC 0200 1000C10.02.04.014.010.060.0
SYPTSC 0300 1000C10.03.04.015.010.060.0
SYPTSC 0400 1000C10.04.04.016.010.060.0
SYPTSC 0500 1000C10.05.04.017.010.060.0
SYPTSC 0050 1200C12.00.55.015.512.060.0
SYPTSC 0100 1200C12.01.05.016.012.060.0
SYPTSC 0200 1200C12.02.05.017.012.060.0
SYPTSC 0300 1200C12.03.05.018.012.060.0
SYPTSC 0400 1200C12.04.05.019.012.060.0
SYPTSC 0500 1200C12.05.05.020.012.060.0
SYPTSC 0600 1200C12.06.05.021.012.060.0
