PRODUCT NAME
SYSLA
Tool Material
Coating
Product Description

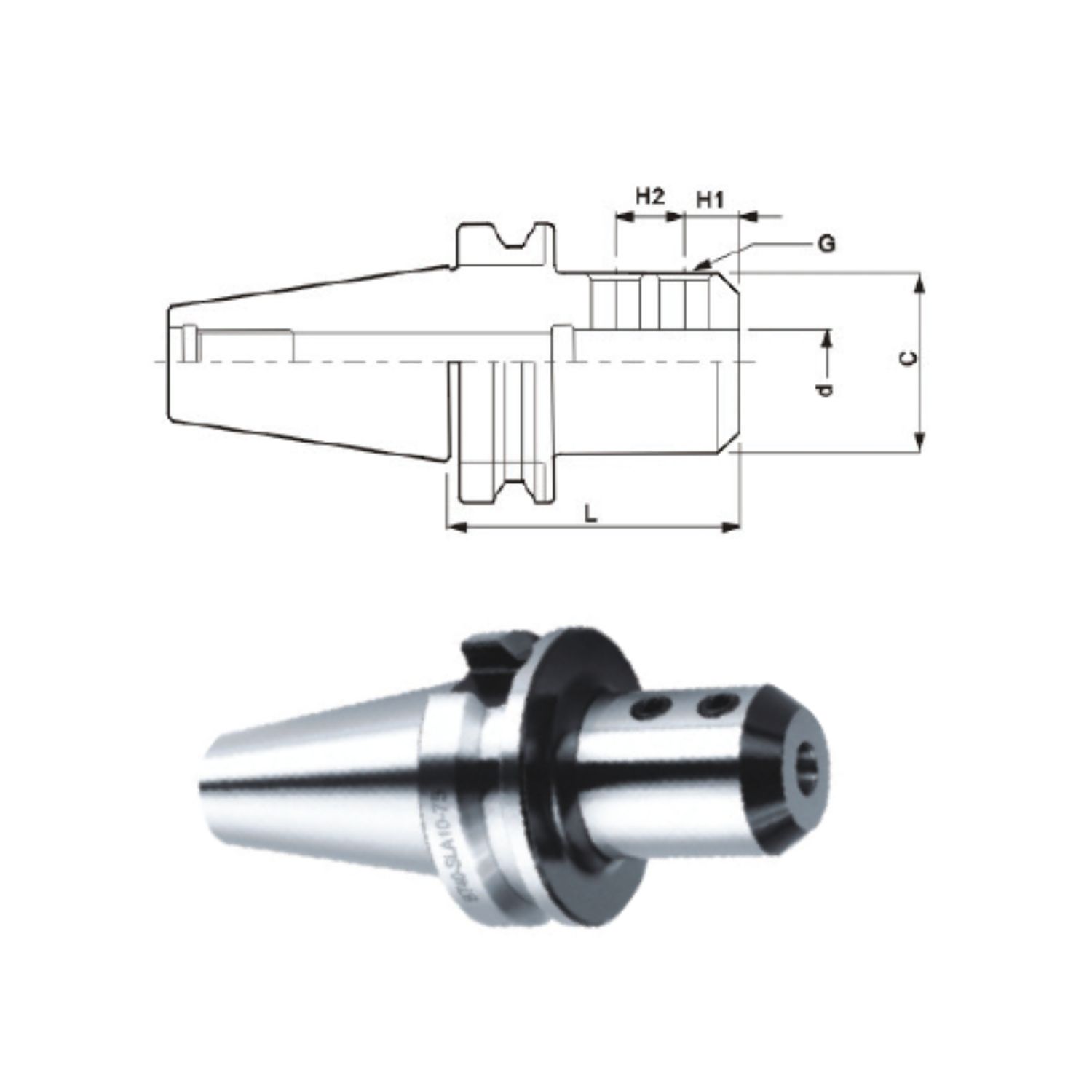

BT-SLA Side Lock Milling Arbor
| Part No. | d | L | C | G(2T) | H1 | H2 |
|---|---|---|---|---|---|---|
| SYSLA BT40 1690 | 16.0 | 90.0 | 45.0 | M10 x 1.5P | 20.0 | 18.0 |
| SYSLA BT40 2090 | 20.0 | 90.0 | 50.0 | M12 x 1.75P | 25.0 | 20.0 |
| SYSLA BT40 2590 | 25.0 | 90.0 | 55.0 | M12 x 1.75P | 25.0 | 22.0 |
| SYSLA BT40 3290 | 32.0 | 90.0 | 60.0 | M16 x 2.0P | 24.0 | 28.0 |
| SYSLA BT50 16100 | 16.0 | 100.0 | 45.0 | M10 x 1.5P | 22.0 | 18.0 |
| SYSLA BT50 20100 | 20.0 | 100.0 | 50.0 | M12 x 1.75P | 25.0 | 20.0 |
| SYSLA BT50 25100 | 25.0 | 100.0 | 55.0 | M12 x 1.75P | 25.0 | 22.0 |
| SYSLA BT50 32105 | 32.0 | 105.0 | 60.0 | M16 x 2.0P | 24.0 | 28.0 |
